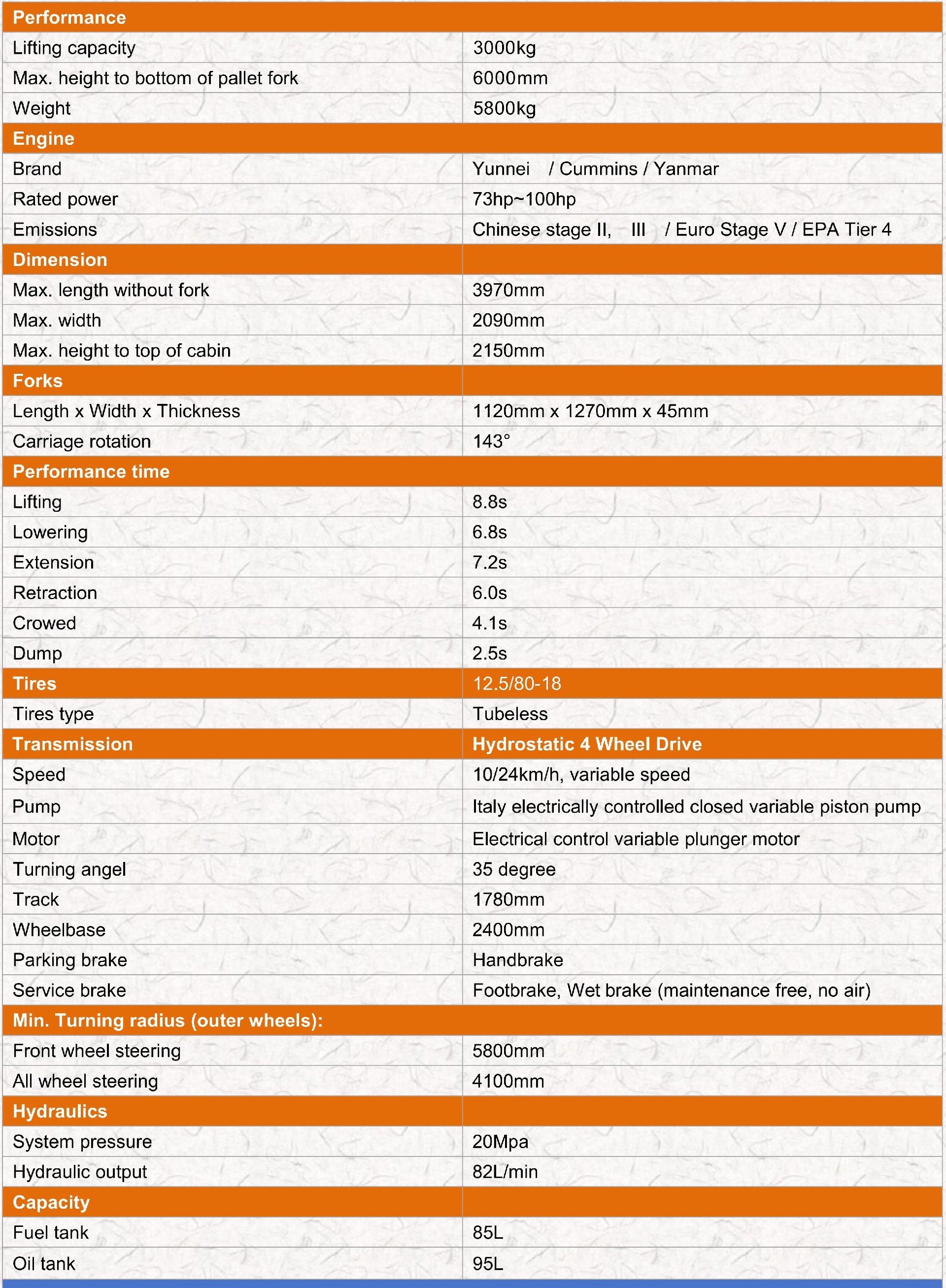

Performance

Lifting capacity

kg/lbs

3000 / 6600

 Max. Lifting height

mm/ft

  6000 / 18

Weight

kg/lbs

5800 / 12760

Engine

Brand

Yunnei / Cummins / Yanmar / FPT

Rated power

kw/hp

55~75 / 75~102

Dimension

Length without fork

mm/inch

3970 / 156

Width

mm/inch

2090 / 84

Height

mm/inch

2150 / 86

Fork Length

mm/inch

1120 / 45

Transmission

Type

Hydrostatic

Control

Electrical Control

Speed

Km/h

Mile/h

9/18

6/11

Axle

Heavy duty, maintenance free multiple-disc brake with oil bath (wet brake)

Driving

Type

4 wheel drive

Min. Turning radius

mm/inch

4100 / 164

Min. ground clearance

mm/inch

330 / 13

Tread

mm/inch

1780 / 71

Wheelbase

mm/inch

2400 / 96

Tyre

12.5/80-18

Hydraulics

System pressure

Mpa/Psi

22 / 3190

Hydraulic output

L/min Gal/min

82 / 21

Capacity

Fuel tank

L/Gal

85 / 22

Oil tank

L/Gal

95 / 25
