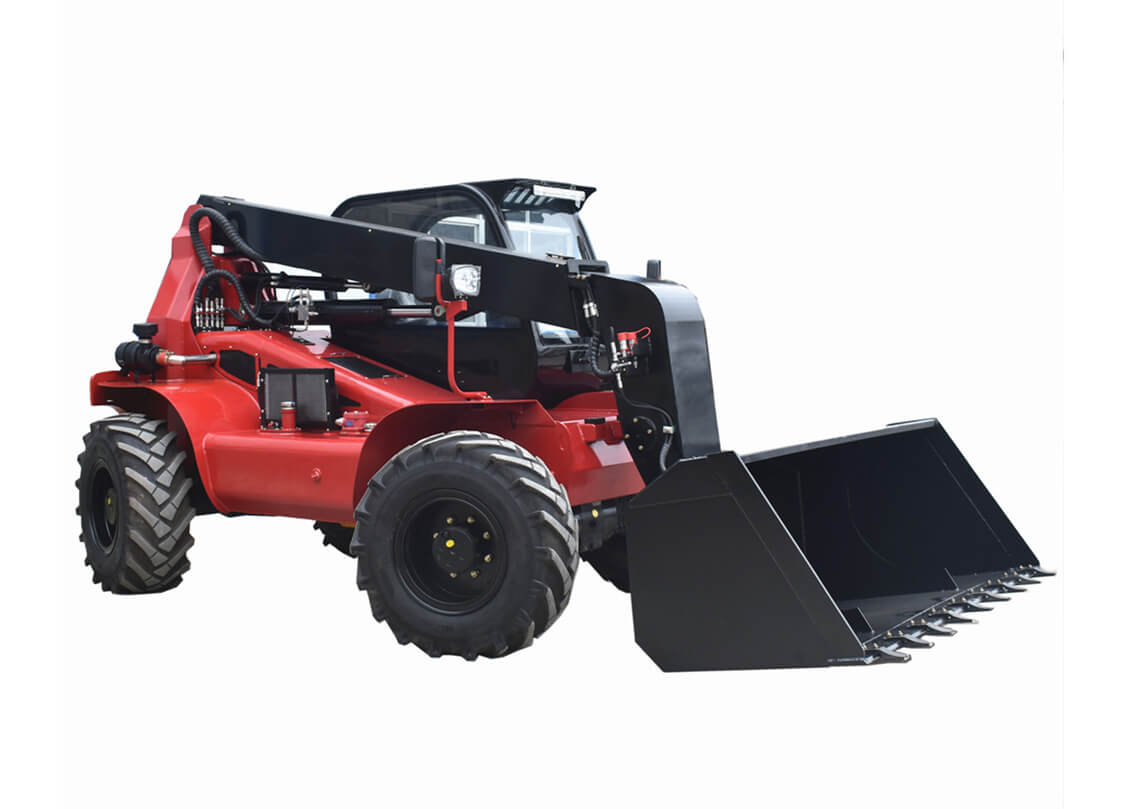

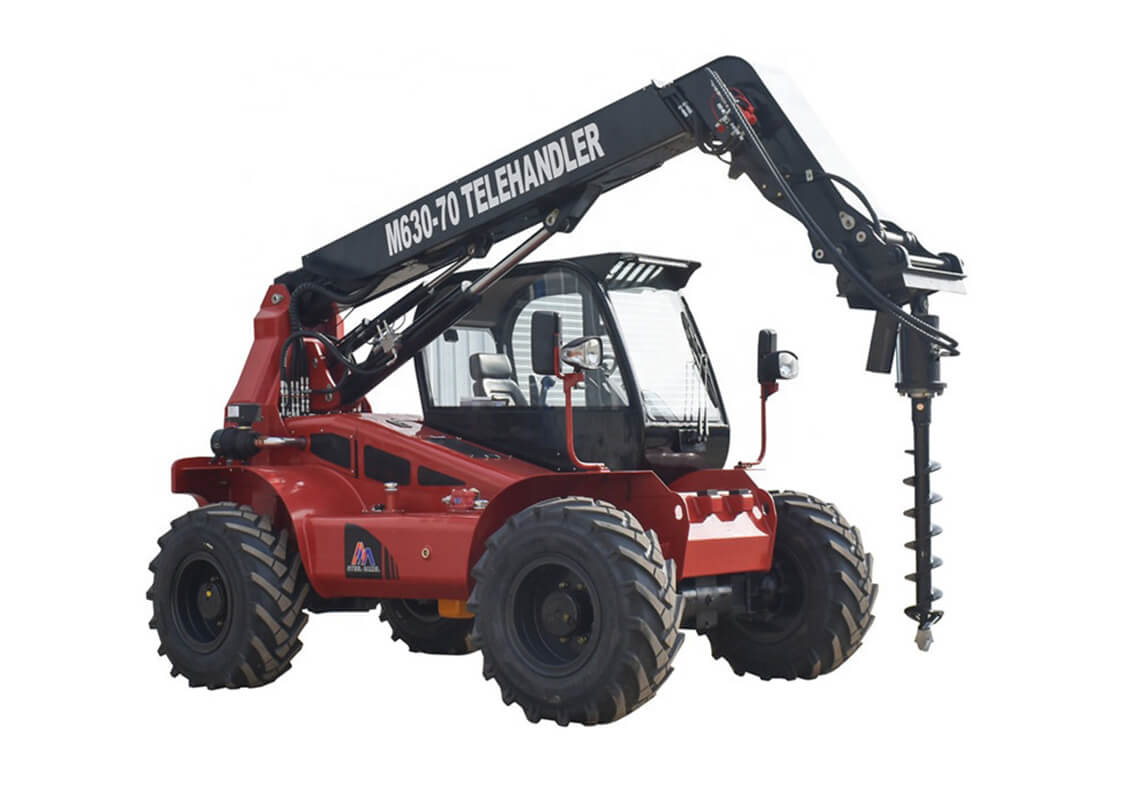

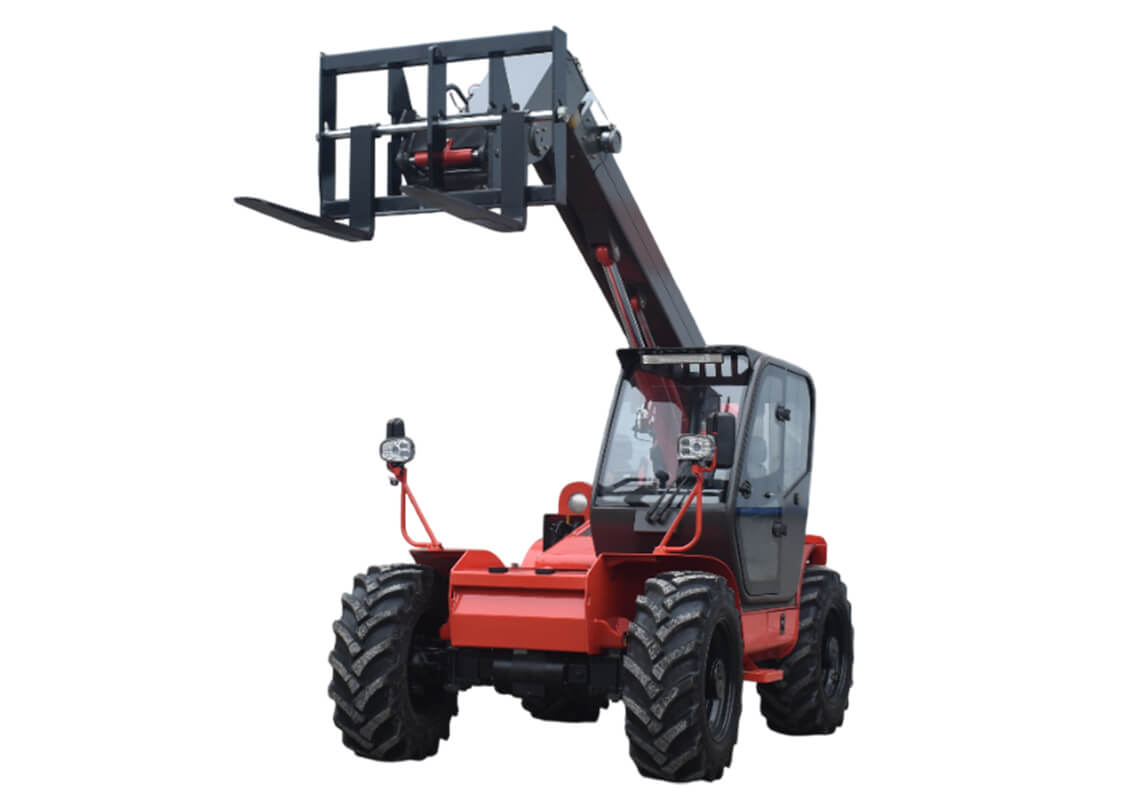

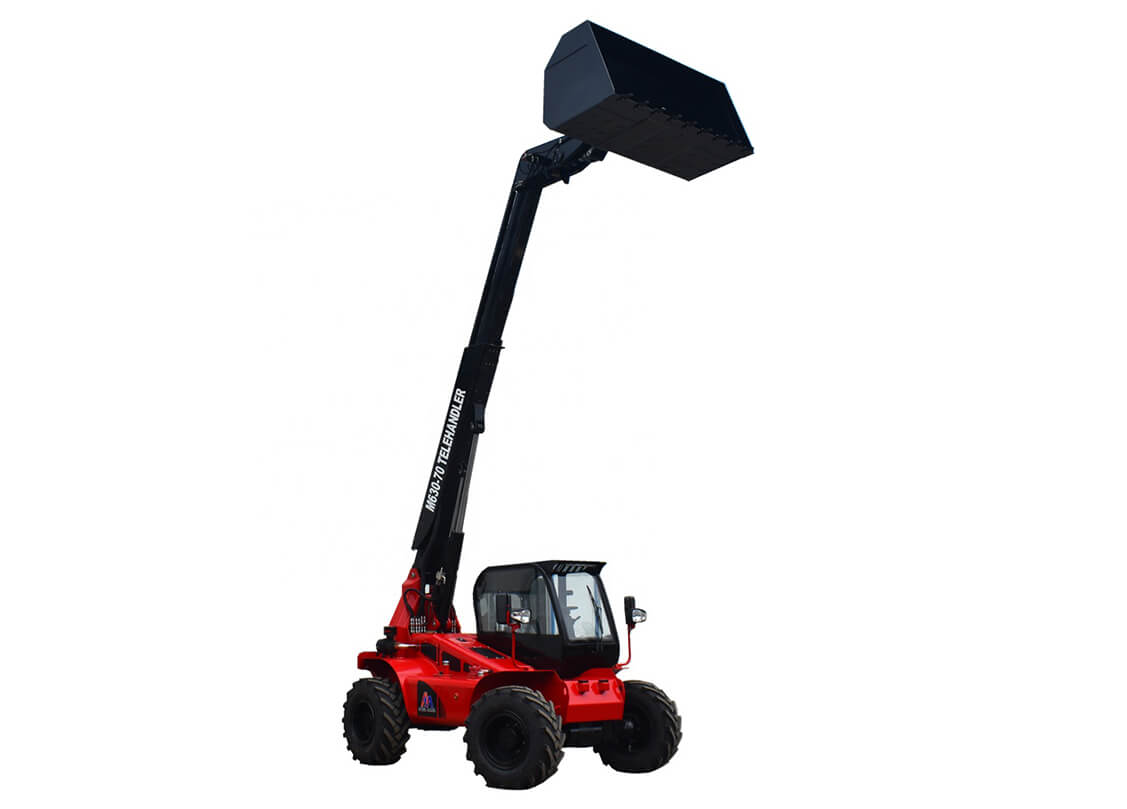

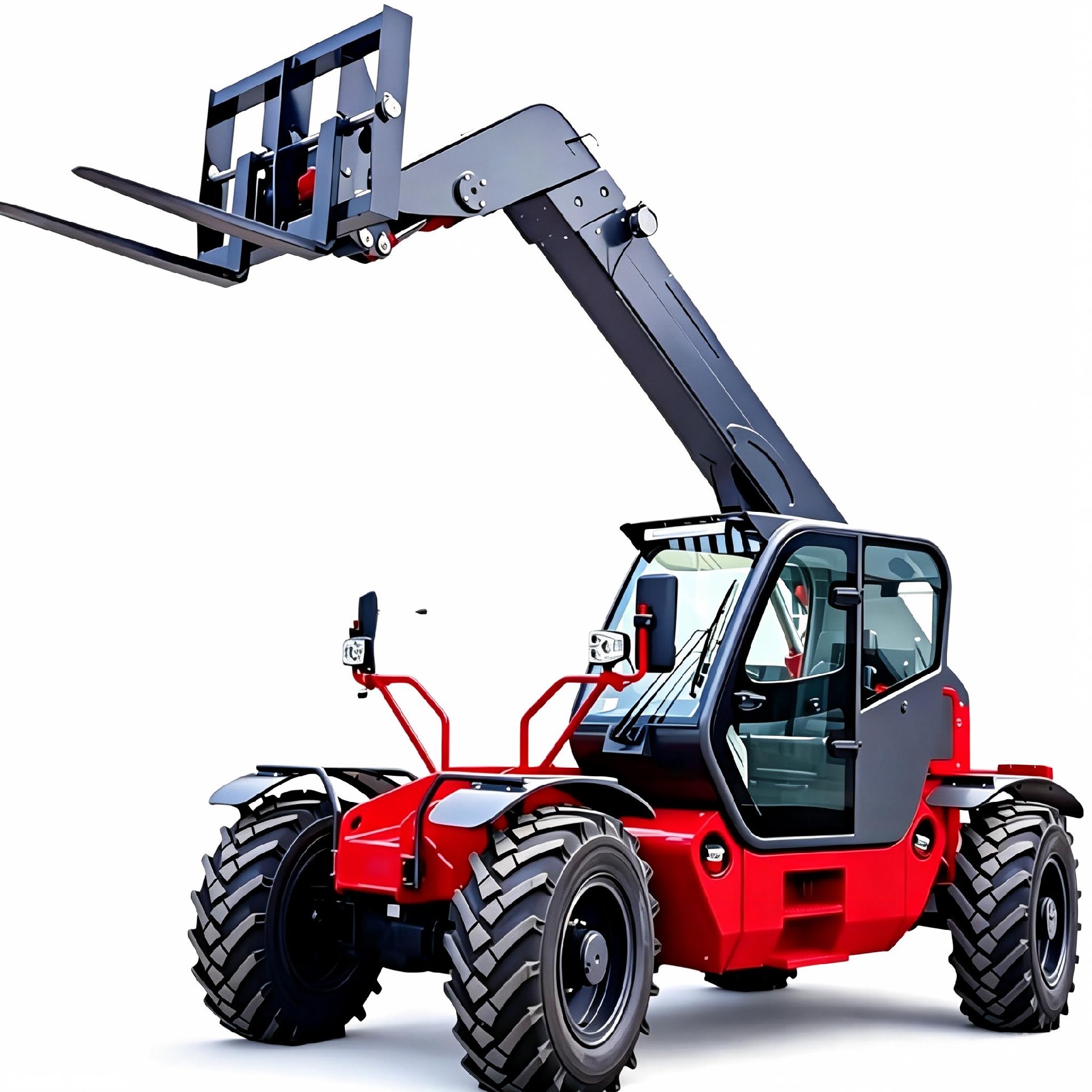

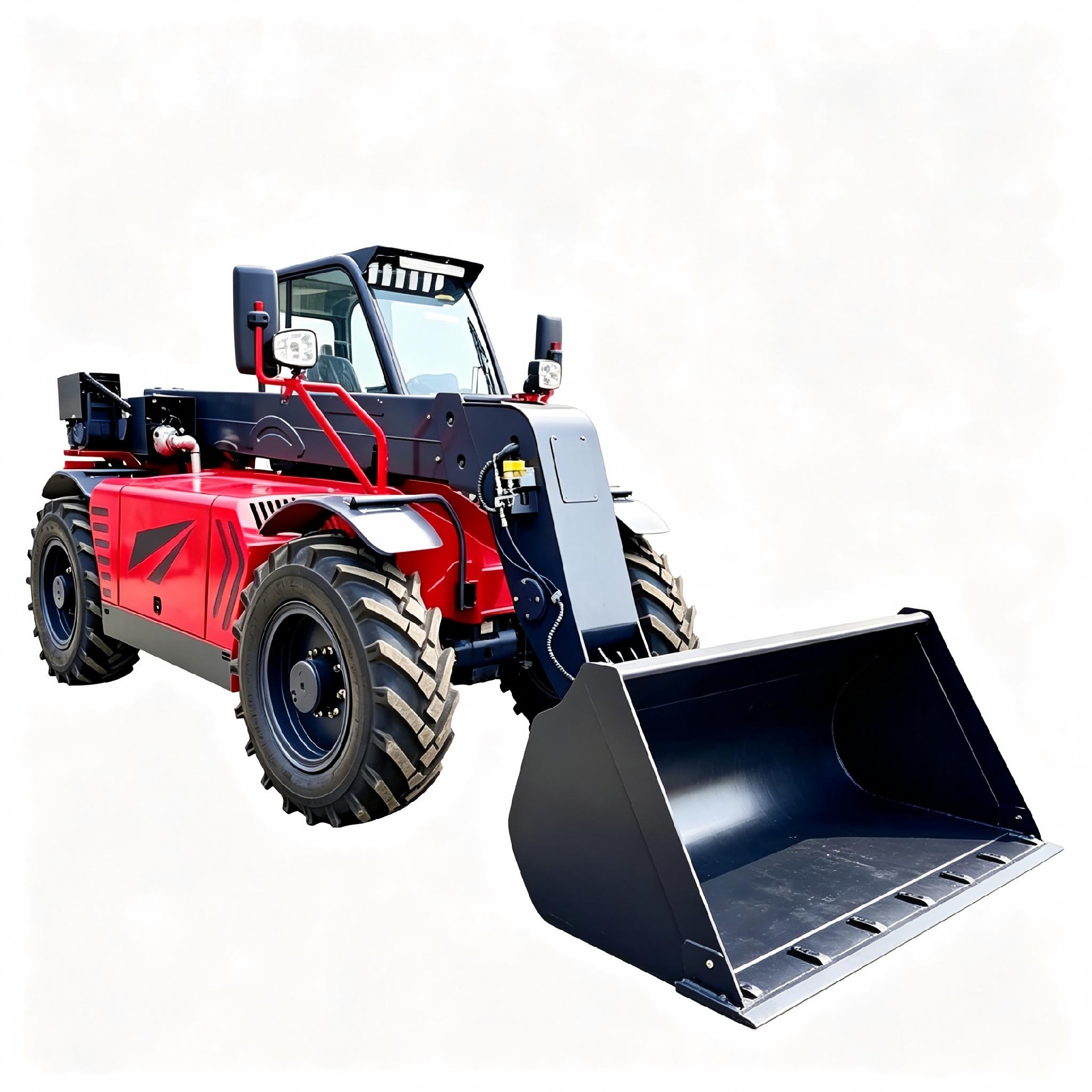

4x4 telescopic wheel loader 3ton 7m multi tool multifunction telehandler with discount price
Product Features:
Full range, various sizes available
Operating friendly luxury cabin with joystick control
Self levering boom with safety valve
Electrical gearshift hydraulic torque converter
Powerful 4 wheel drive
4 wheel Steer (front steer/crab steer/4 wheel steer)
Free maintenance reliable wet brake axle
Hydraulic Quick Hitch for various attachments
Hydraulic Output for attachments
Product Parameters:

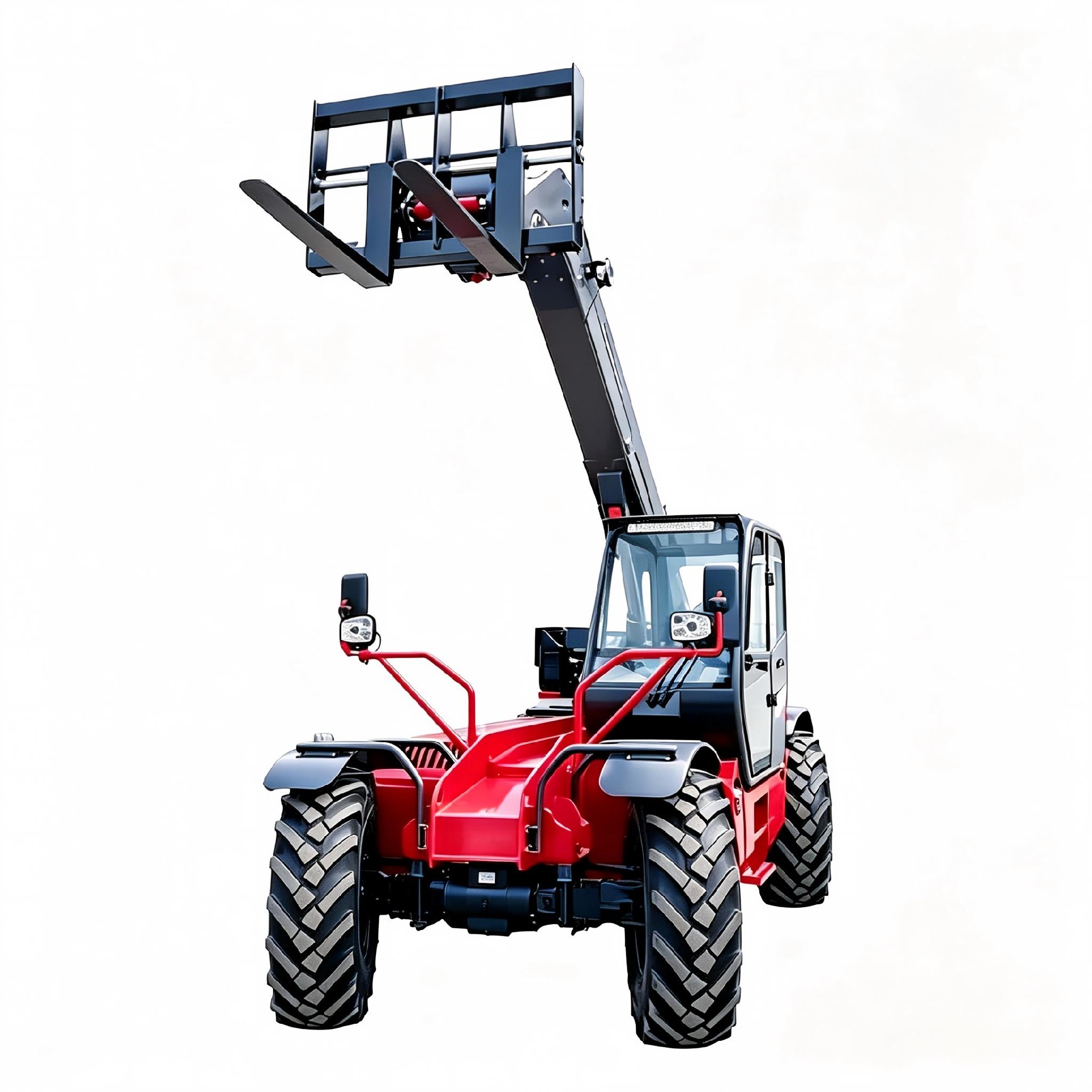

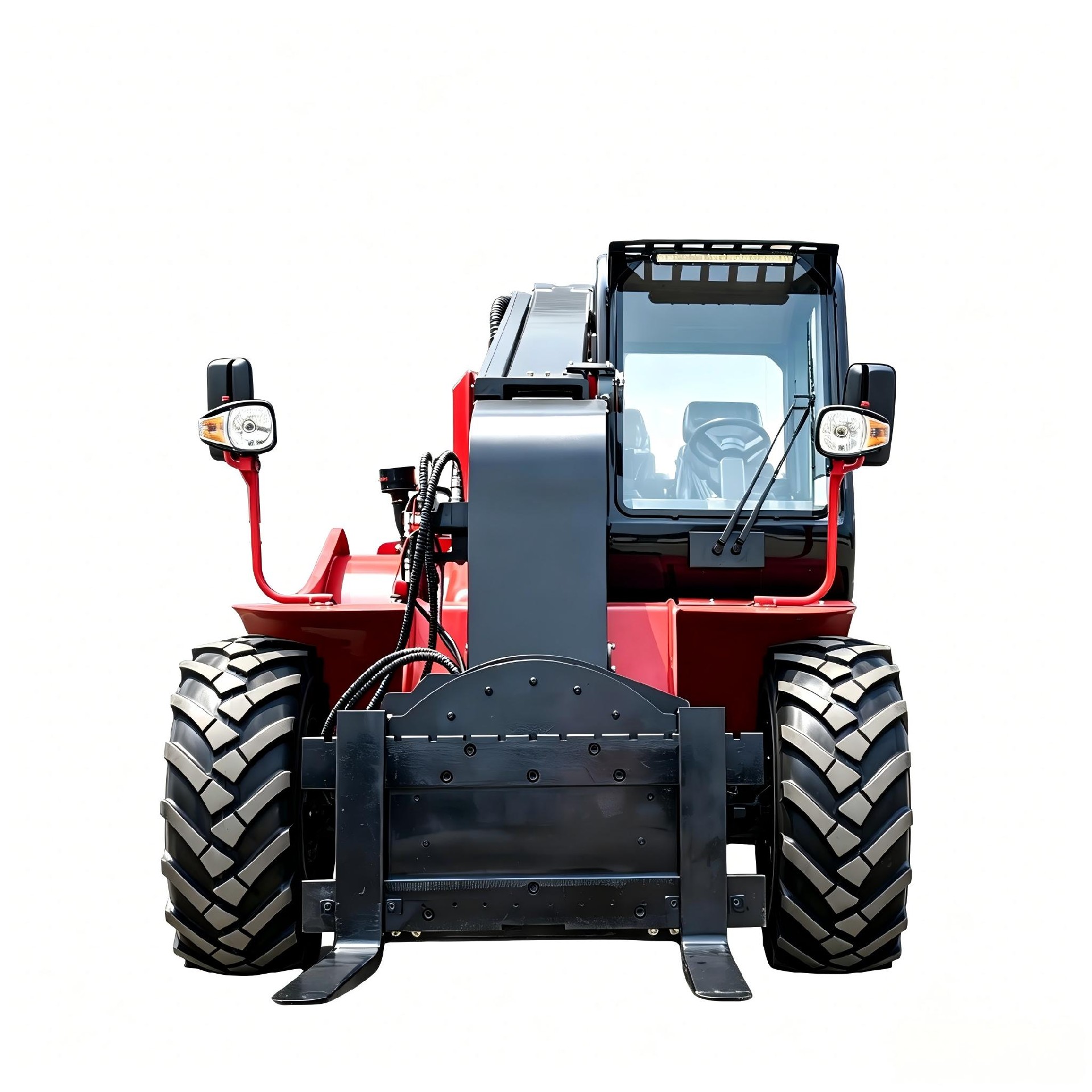

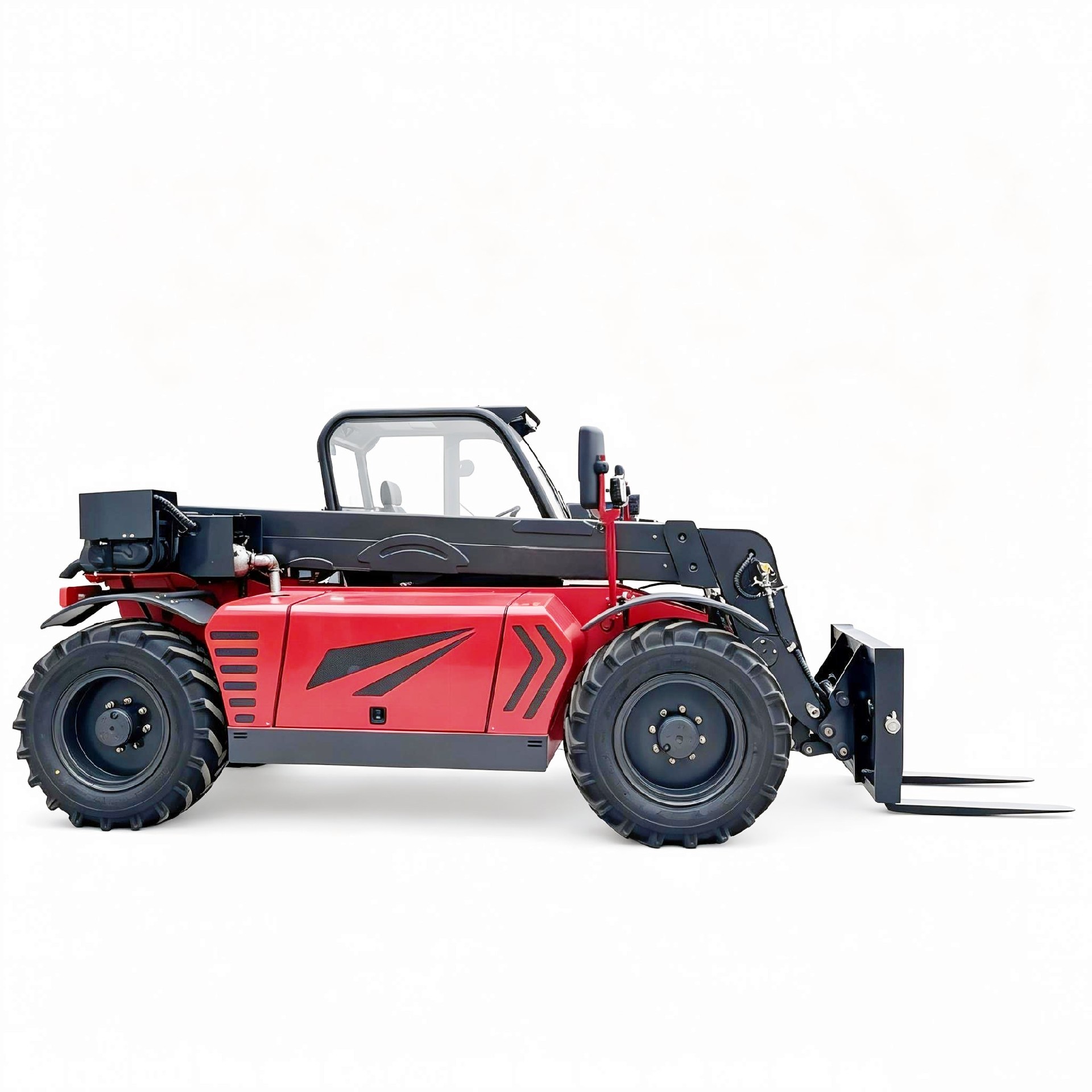

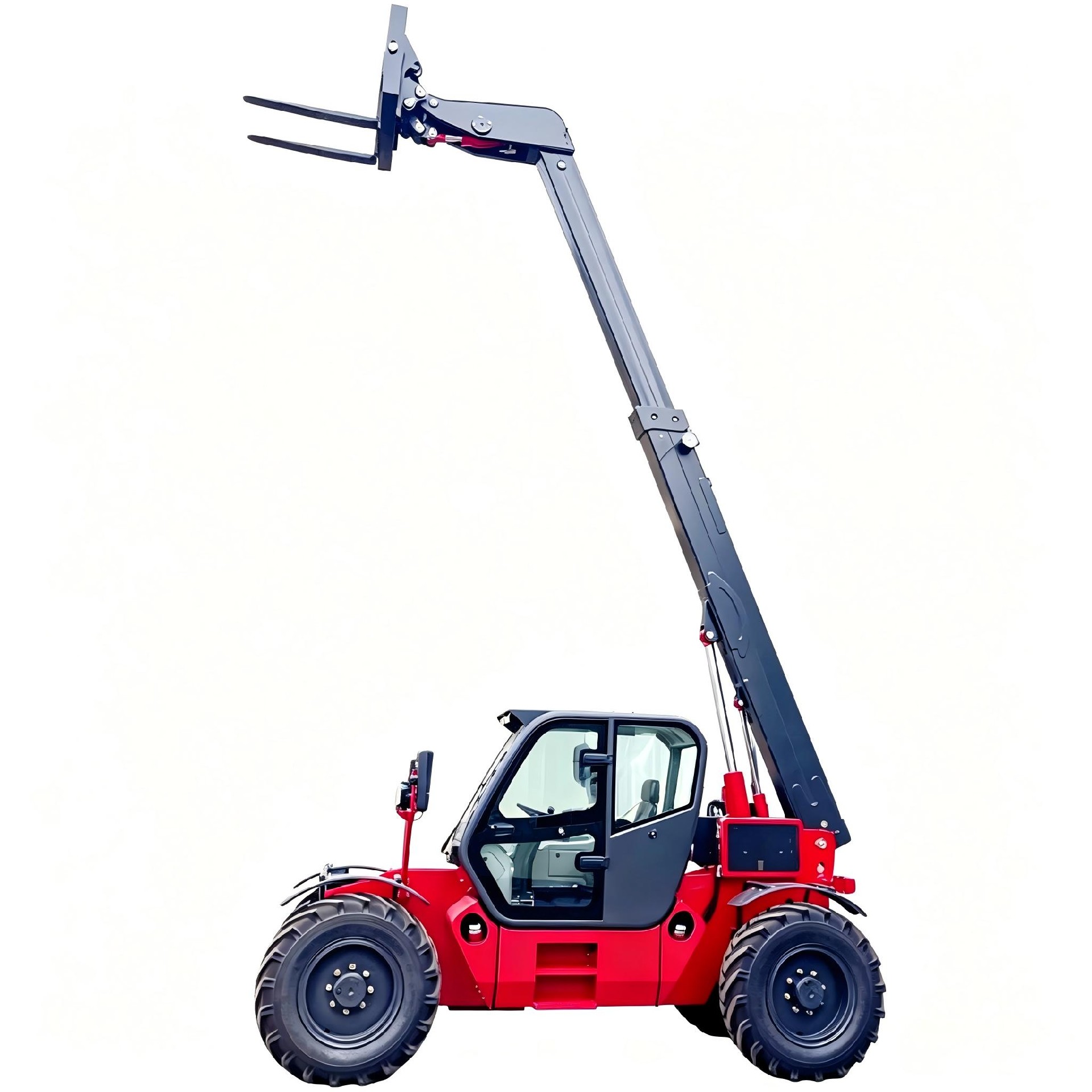

Model | Unit | M730 |
Performance | ||
Lifting capacity | kg/lbs | 3000 / 6600 |
Max. Lifting height | mm/ft | 7250 / 22 |
Weight | kg/lbs | 6900 / 15180 |
Engine | ||
Brand | Yunnei / Cummins / Yanmar / FPT | |
Rated power | kw/hp | 55~75 / 75~102 |
Dimension | ||
Length without fork | mm/inch | 4250 / 170 |
Width | mm/inch | 2200 / 88 |
Height | mm/inch | 2490 / 100 |
Fork Length | mm/inch | 1120 / 45 |
Transmission | ||
Type | Hydraulic Torque Converter | |
Control | Electrical Gearshift | |
Speed | Km/h Mile/h | 10/22 6/14 |
Axle | Heavy duty, maintenance free multiple-disc brake with oil bath (wet brake) | |
Driving | ||
Type | 4 wheel drive | |
Min. Turning radius | mm/inch | 4150 / 166 |
Min. ground clearance | mm/inch | 390 / 16 |
Tread | mm/inch | 1785 / 71 |
Wheelbase | mm/inch | 2500 / 100 |
Tyre | 16/70-20 | |
Hydraulics | ||
System pressure | Mpa/Psi | 22 / 3190 |
Hydraulic output | L/min Gal/min | 96 / 25 |
Capacity | ||
Fuel tank | L/Gal | 115 / 30 |
Oil tank | L/Gal | 92 / 24 |
