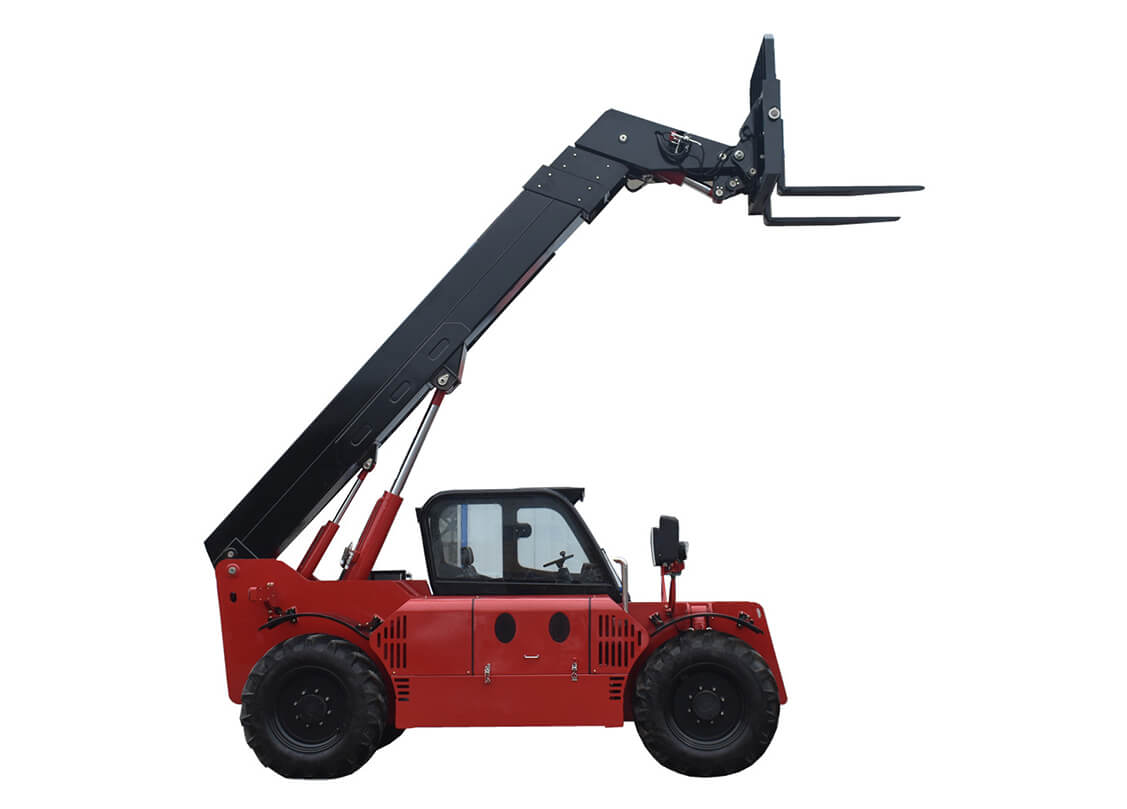

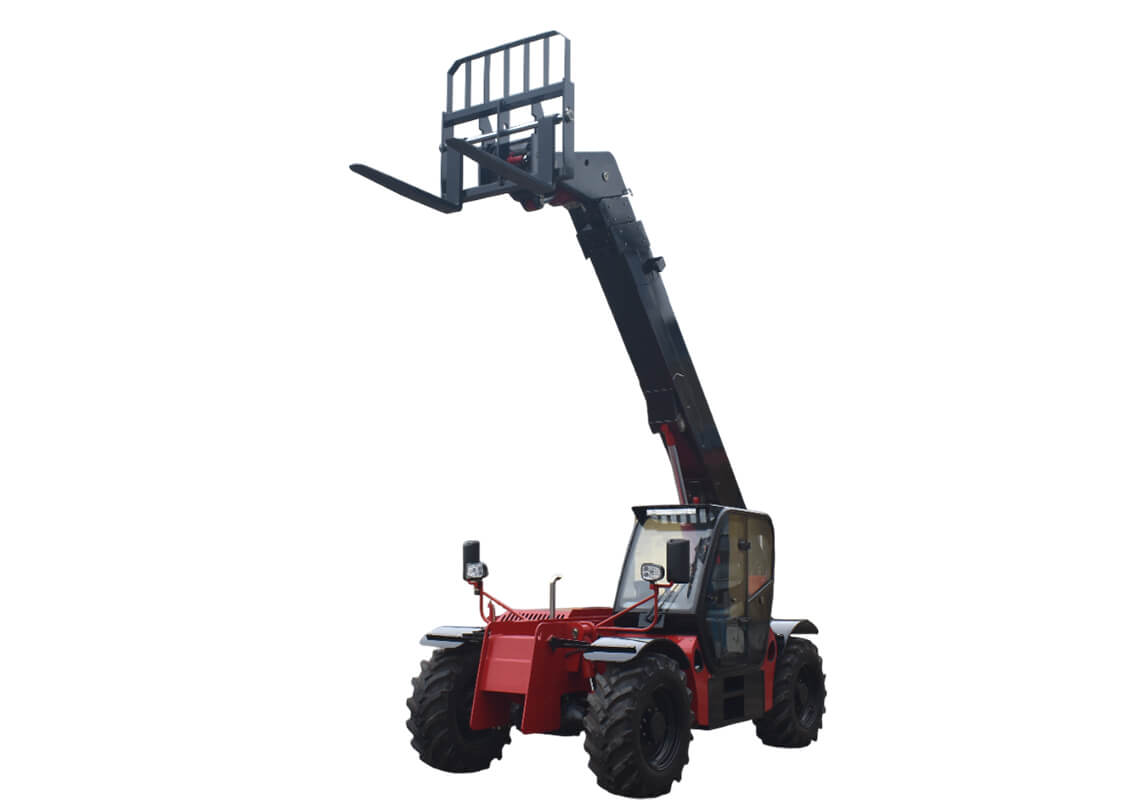

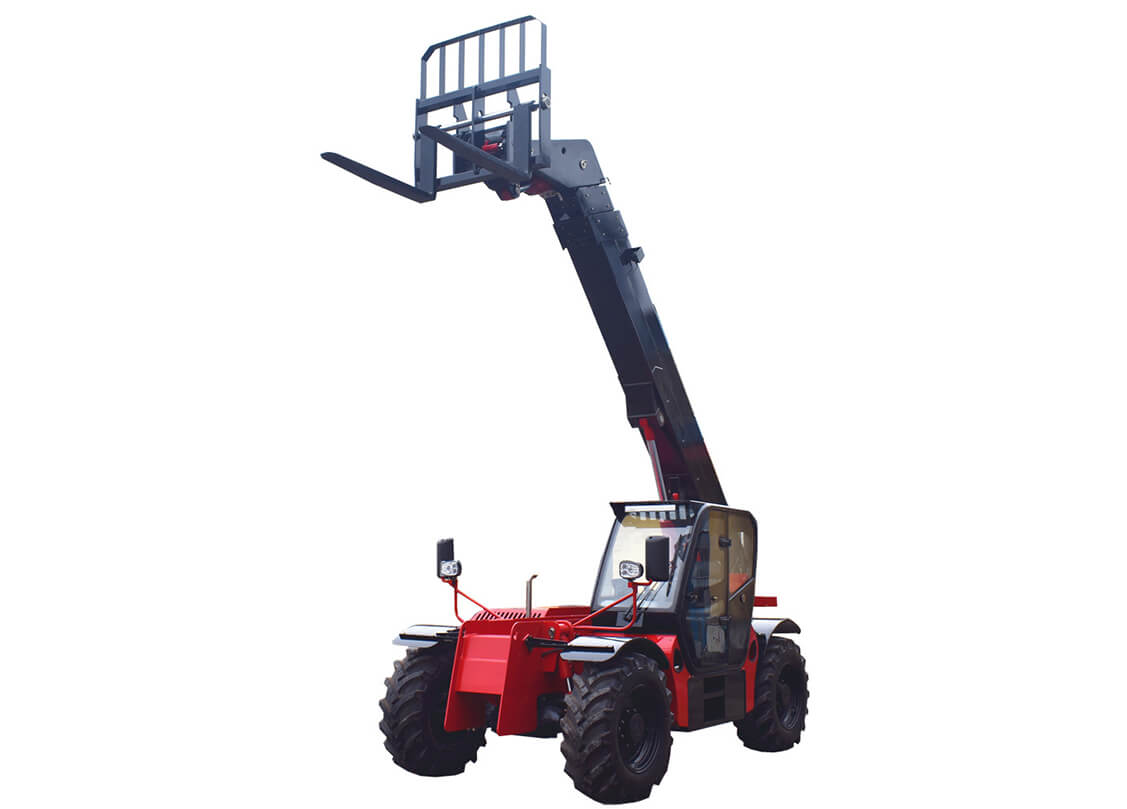

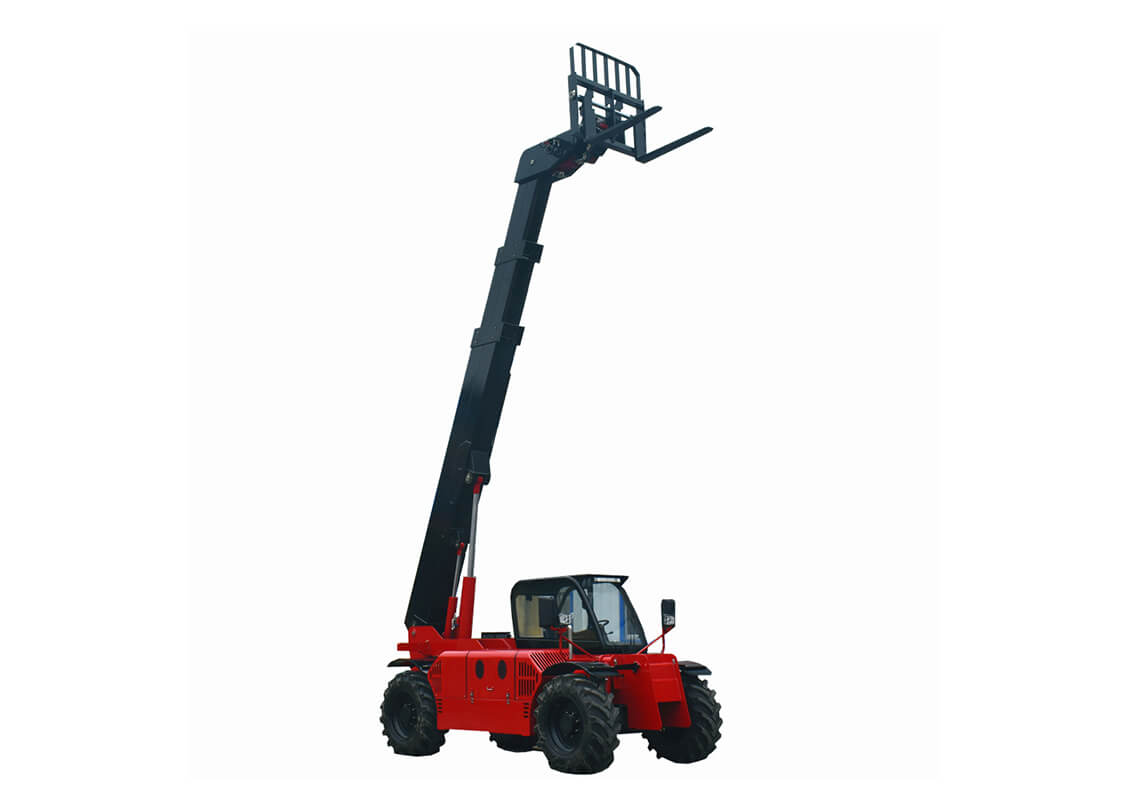

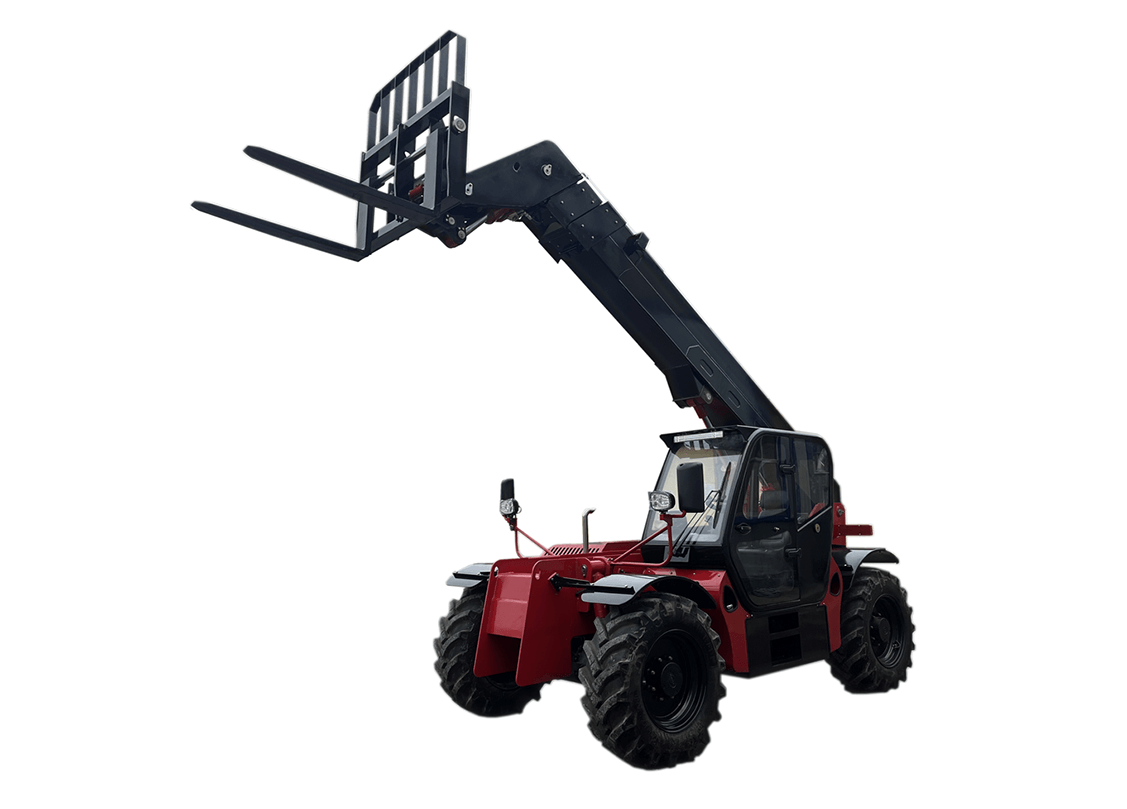

New JCB 4ton Telescopic Handler Telehandler 13m Lifting Height Telehandler Forklift With CE
Product Features:
Full range, various sizes available
Operating friendly luxury cabin with joystick control
Self levering boom with safety valve
Hydrostatic Transmission for precision motion
Powerful 4 wheel drive
4 wheel Steer (front steer/crab steer/4 wheel steer)
Free maintenance reliable wet brake axle
Hydraulic Quick Hitch for various attachments
Hydraulic Output for attachments

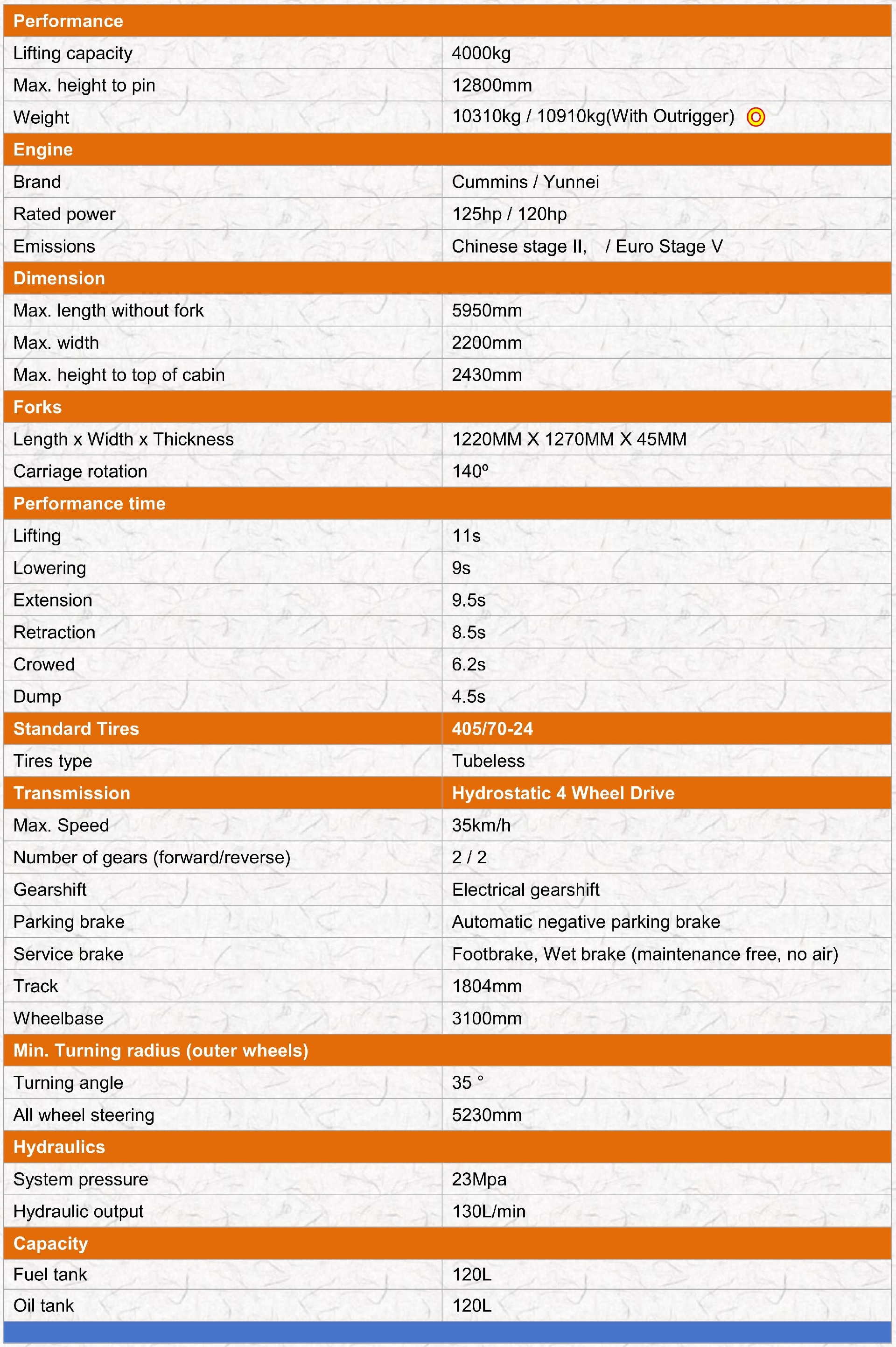

Product Parameters:

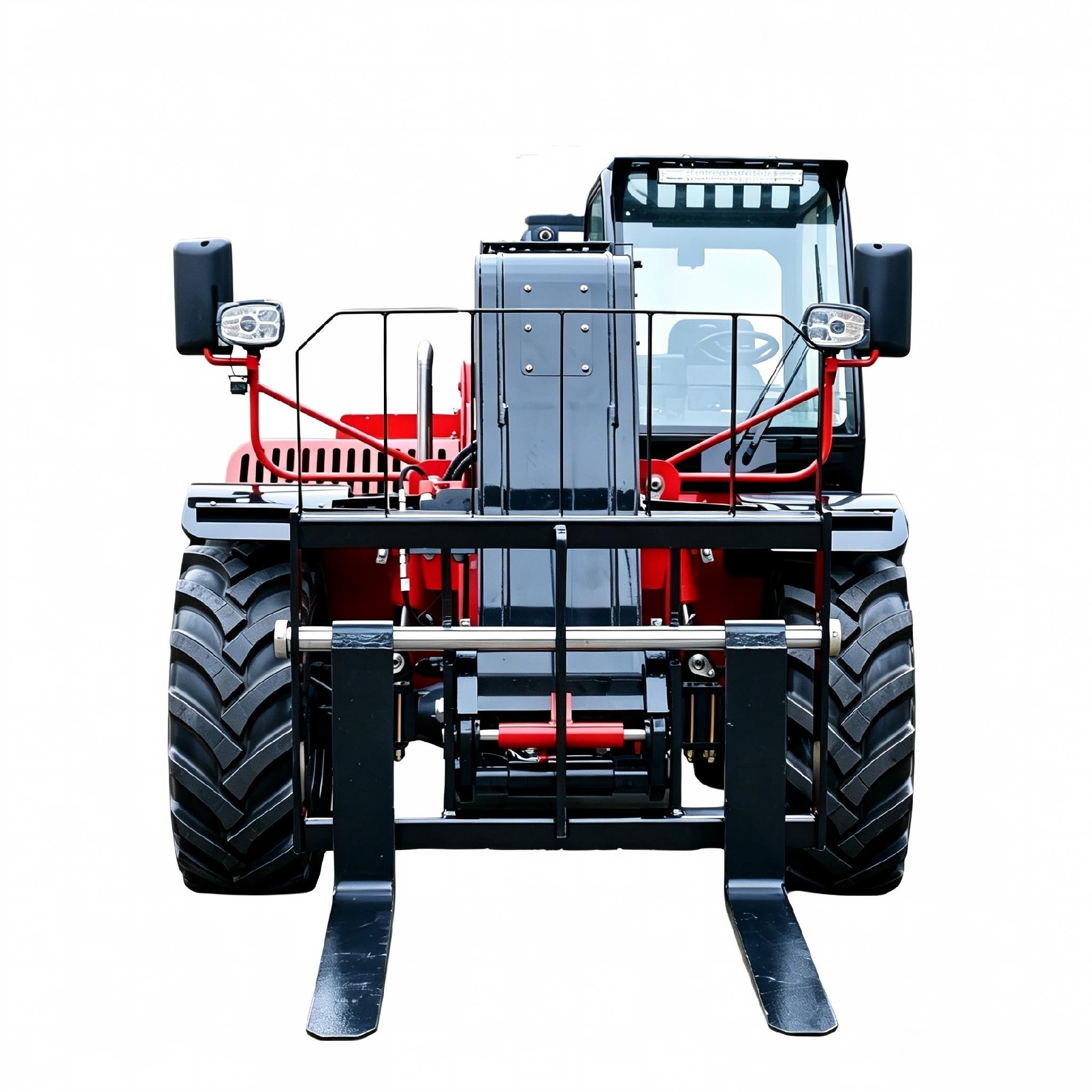

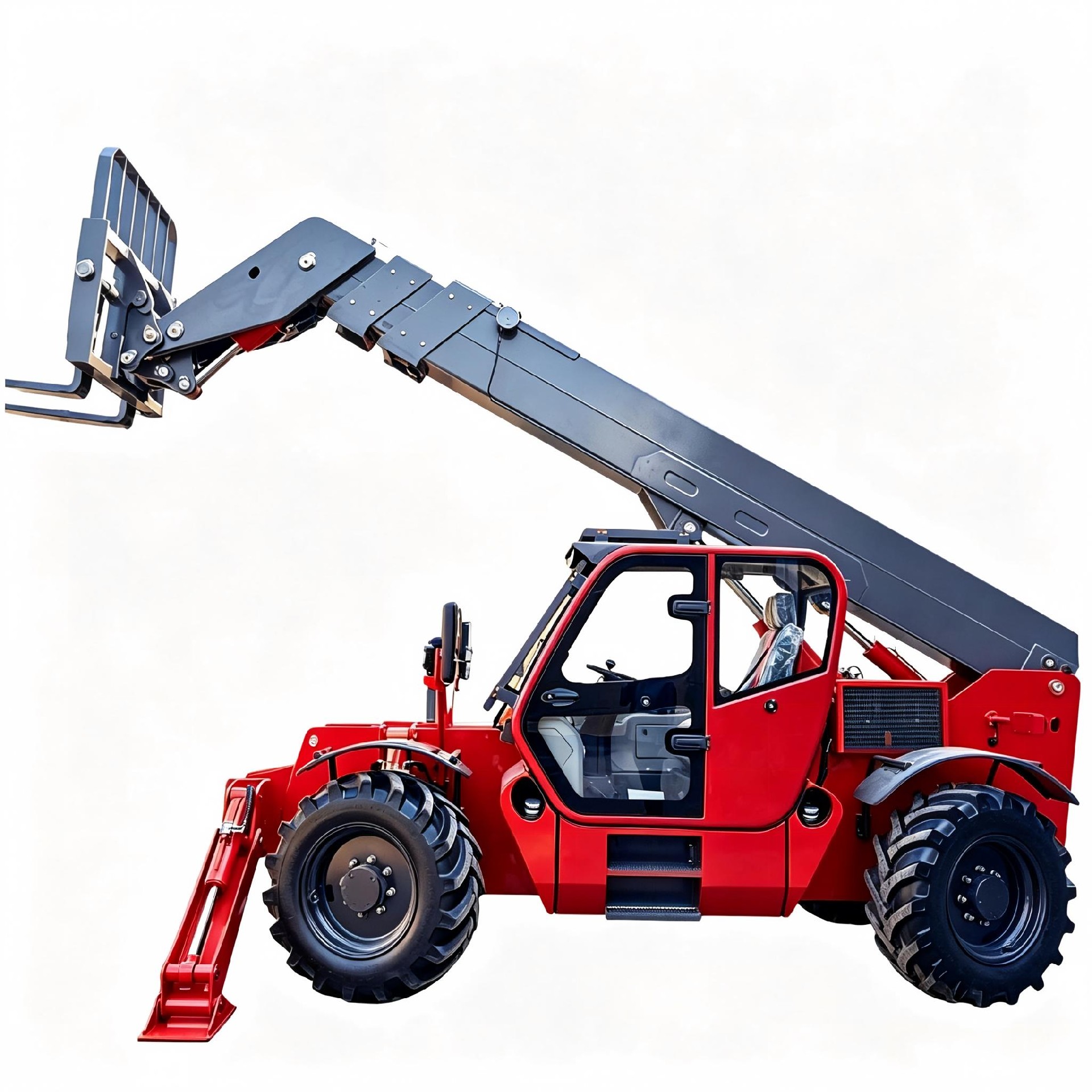

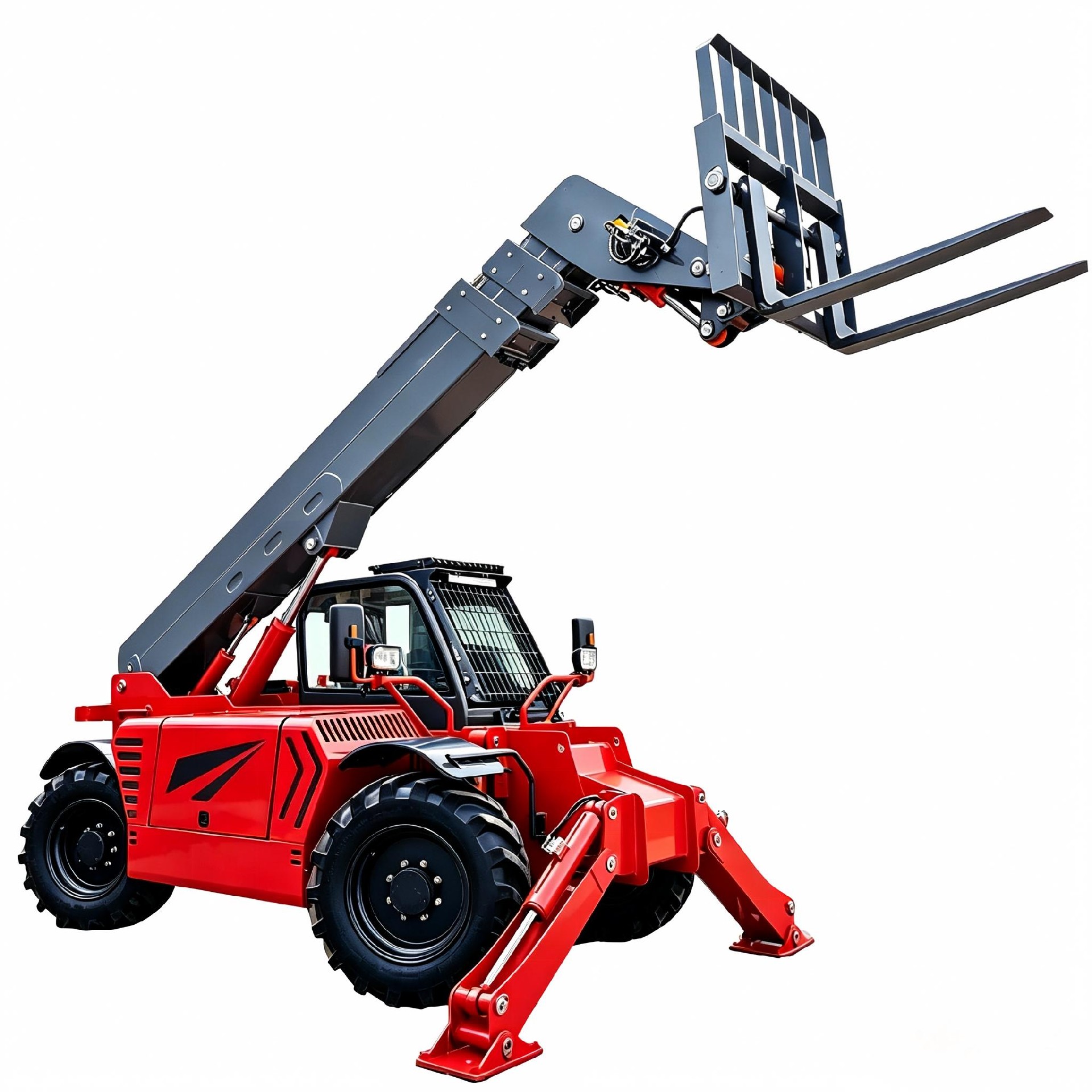

Model | Unit | M1340 |
Performance | ||
Lifting capacity | kg/lbs | 4000 / 8800 |
Max. Lifting height | mm/ft | 12800 / 38 |
Weight | kg/lbs | 10310 / 22682 |
Engine | ||
Brand | Yunnei / Cummins / Yanmar / FPT | |
Rated power | kw/hp | 92~95 / 125~129 |
Dimension | ||
Length without fork | mm/inch | 5950 /238 |
Width | mm/inch | 2200 / 88 |
Height | mm/inch | 2430 / 97 |
Fork Length | mm/inch | 1220 / 49 |
Transmission | ||
Type | Hydrostatic | |
Control | Electric proportional control | |
Speed | Km/h Mile/h | 10/35 6/22 |
Axle | Heavy duty, maintenance free multiple-disc brake with oil bath (wet brake) | |
Driving | ||
Type | 4 wheel drive | |
Min. Turning radius | mm/inch | 5230 / 209 |
Min. ground clearance | mm/inch | 410 / 16 |
Tread | mm/inch | 1804 / 72 |
Wheelbase | mm/inch | 3100 / 124 |
Tyre | 405/70-24 | |
Hydraulics | ||
System pressure | Mpa/Psi | 23 / 3335 |
Hydraulic output | L/min Gal/min | 130 / 34 |
Capacity | ||
Fuel tank | L/Gal | 120 / 31 |
Oil tank | L/Gal | 120 / 31 |
