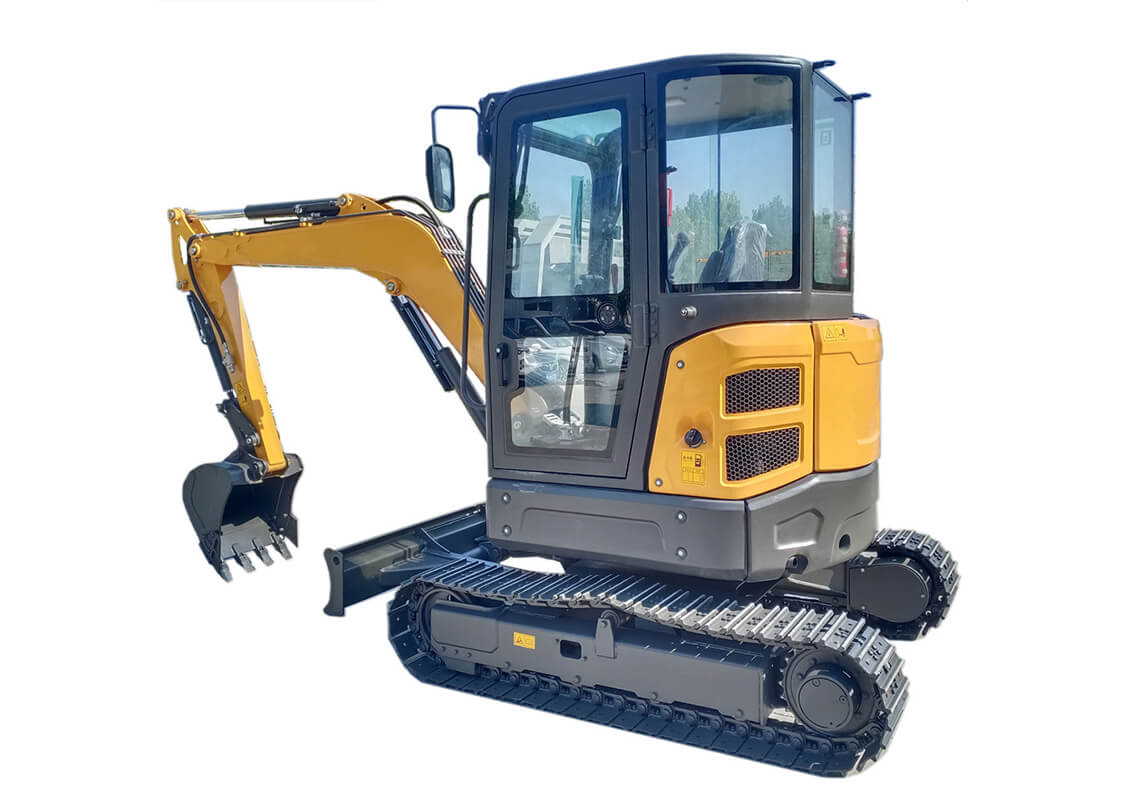

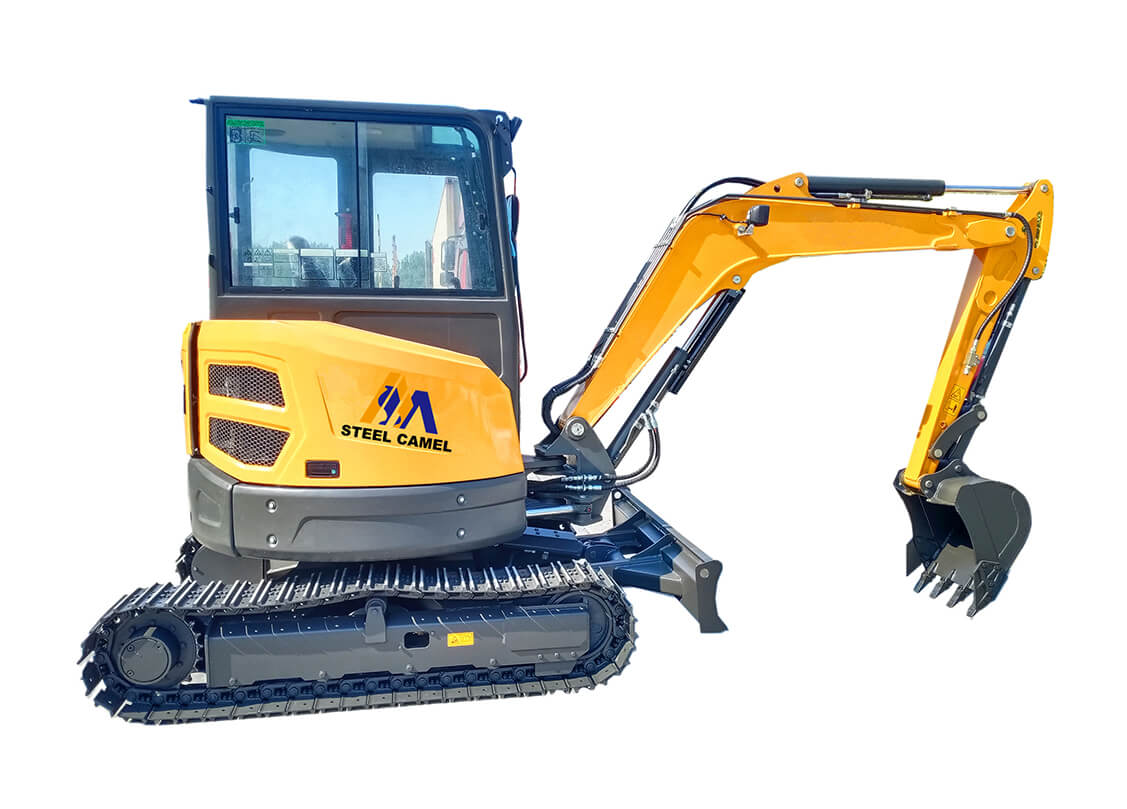

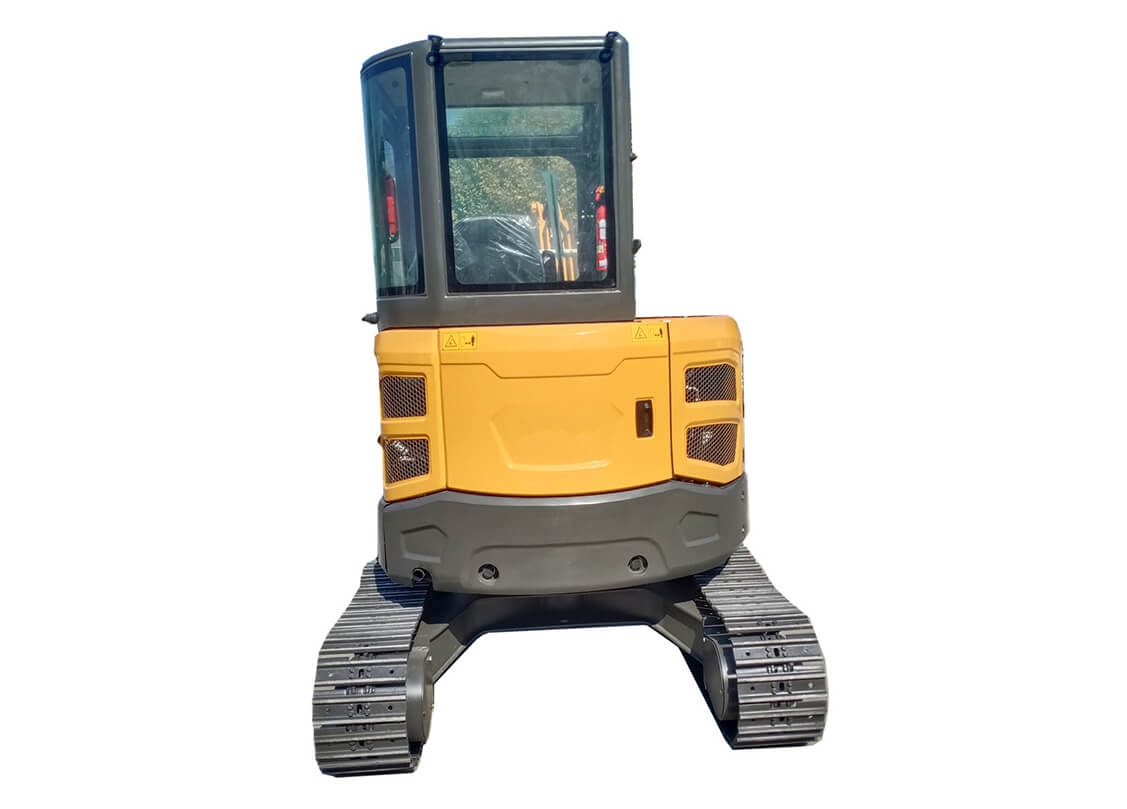

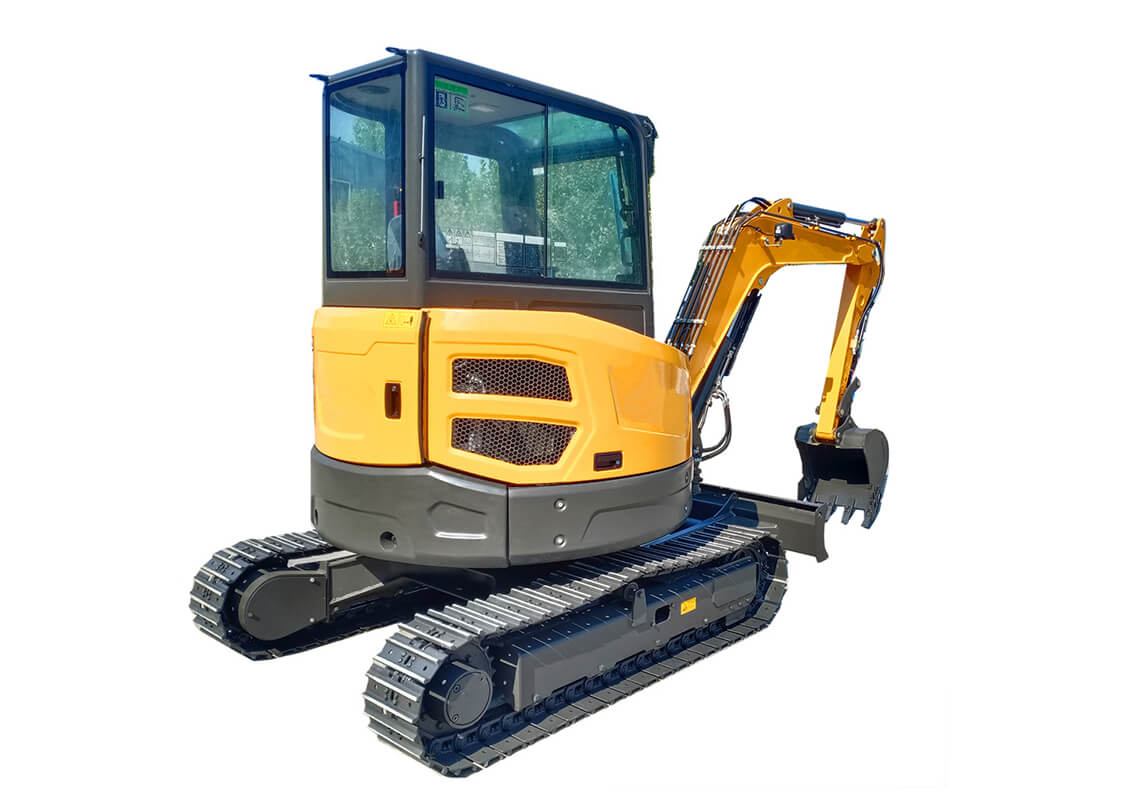

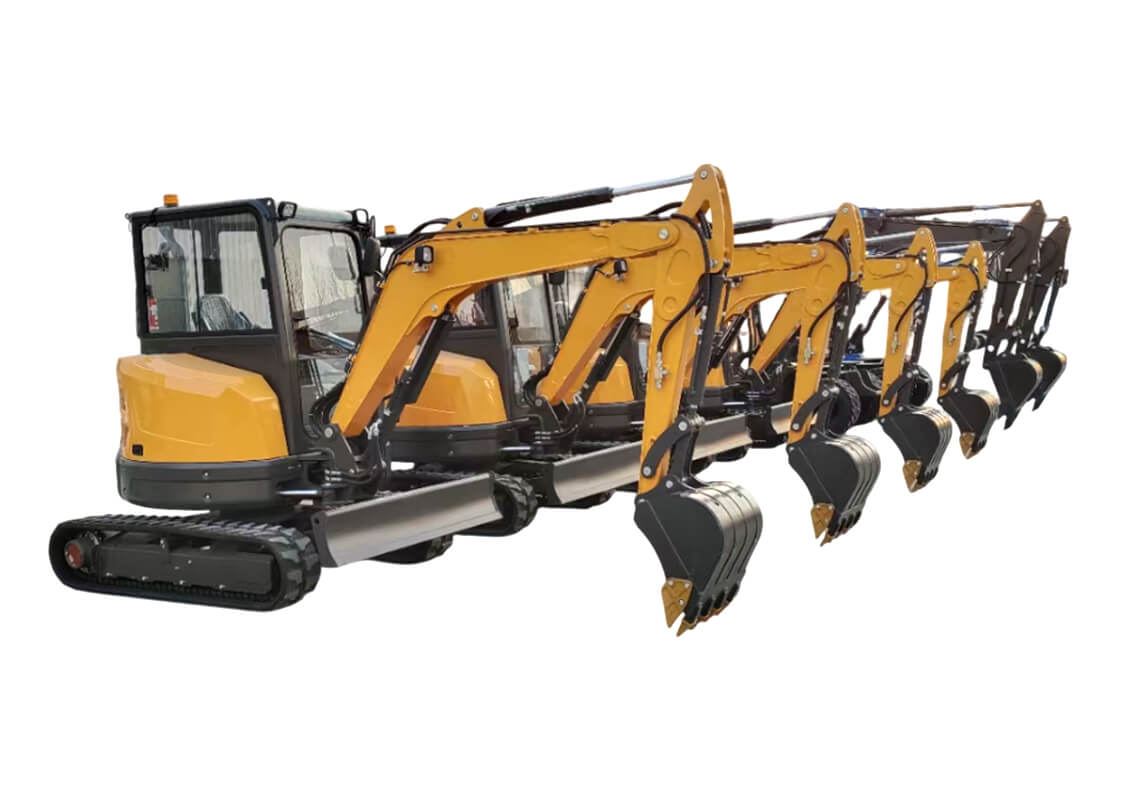

Mini excavator 3.5ton small digger micro excavation machine high quality earthmoving machinery compact excavators for sale
Product Features:
Efficient Operation: This 3.5ton mini excavator boasts high operating efficiency, making it an ideal choice for various industries, including building material shops, machinery repair shops, manufacturing plants, farms, and construction works.
Comprehensive Warranty: The product comes with a 1-year warranty on core components, including the engine, gear, motor, and pump, providing peace of mind for users.
Environmental Compliance: The excavator meets EPA Tier 4 and EU Emission Standard 5, ensuring minimal environmental impact and compliance with regulations.
Advanced Features: Equipped with a Kubota engine, this excavator offers reliable performance and durability, making it a valuable addition to any operation.
Product Parameters:
Model | Unit | SC35 |
ENGINE | ||
Emission Standard | Euro 5,EPA4 | |
Make /Model | KUBOTA /D1703 | |
Power /Rotation speed | kw/hp@rpm | 18.5/25@2200 |
Number of cylinder | 3 | |
Type | In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated | |
Max.torque | N.m/rpm | 97.4/1500 |
Displacement | L/Gal | 1.642/0.427 |
TRACK DRIVING SYSTEM | ||
Maximum Travel speed(High/low) | Km/h Mile/h | 4.4/2.4 2.73/1.49 |
Width of steel track shoe | mm/inch | 300/12 |
Carrier roller(Each side) | 1 | |
Supporting roller(Each side) | 4 | |
PERFORMANCE PARAMETER | ||
Standard Bucket capacity | m³ | 0.12 |
Swing speed | rpm | 12 |
Maximum Grade ability | %/° | 58/30 |
Ground pressure | Kpa | 32 |
Maximum Bucket digging force | KN | 30.4 |
Maximum Arm digging force | KN | 18.2 |
Hydraulic system pressure | Mpa/Psi | 22.5/3262.5 |
Machine weight | kg/lbs | 3810/8382 |
Boom length | mm/inch | 2535/101.4 |
Arm length | mm/inch | 1400/56 |
Fuel tank capacity | L/Gal | 40/10.4 |
Hydraulic oil tank capacity | L/Gal | 44/11.44 |
Engine oil capacity | L/Gal | 7/1.82 |
Radiator capacity | L/Gal | 3.8/0.998 |
Final drive | L/Gal | 2*0.7/2*0.182 |
MACHINE SIZE | ||
Overall dimension (L*W*H) | mm/inch | 4915*1720*2525/196.6*68.8*101 |
Axle base(Track length on ground) | mm/inch | 1670/66.8 |
Length of rubber track | mm/inch | 2154/86.16 |
Track gauge | mm/inch | 1420/56.8 |
Minimum Ground clearance | mm/inch | 295/11.8 |
Swing radius at tail | mm/inch | 860/34.4 |
Swing radius at front | mm/inch | 2538/101.52 |
Height of blade | mm/inch | 350/14 |
WORKING RANGE | ||
Maximum Digging height | mm/inch | 4800/192 |
Maximum Dumping height | mm/inch | 3406/136.24 |
Maximum Digging depth | mm/inch | 3208/128.32 |
Maximum Vertical digging depth | mm/inch | 2957/118.28 |
Maximum Digging distance(working radius) | mm/inch | 5480/219.2 |
Maximum digging distance (on ground) | mm/inch | 5359/214.36 |
Minimum swing radius | mm/inch | 2530/101.2 |
Max.height when min.swing radius | mm/inch | 3655/146.2 |
Maximum Lifting height of blade | mm/inch | 365/14.6 |
Maximum Cutting depth of blade | mm/inch | 385/15.4 |
Boom swing angle(Left/Right) | °/° | 55/65 |
